ATLANTIC
The Atlantic IP65 LED is a surface mounted corrosion proof fitting. Made from a high impact resistant GRP (glass reinforced plastic) body that protects the LED’s and the luminaire’s other components. It boasts an *IP65 rating and the prismatic diffuser ensures there is a maximum diffusion of light.
Compatible for dimming 1-10v, controls and 3 hour emergency lighting in standard version.
*IP = Ingress Protection Rating 65 - Dust -proof & protected against low pressure water jets from all directions.
Specification
Lumen outputs to 125 Lm/watt
High Colour Rendition CRI >80
Long Life LEDs
SELV rated
60,000hours plus
LM 80 @ 50,000 hours
Uniform Light Distribution
Wattage: 14/28/33/66/70
LDT Photometrics available
CE Conformity
Dimmable/Control Options Available
Details
Electrical classification II
Ingress Protection IP65
Operating Temp –10 to +50 Deg C
Lumens per Watt 80+
Storage Temp –5deg to + 45deg C
Applications
Car Parks
Plant Rooms
Loading Bays
Industrial Premises
High Moisture Areas
Kitchens
Opal Prismatic
Clear Prismatic

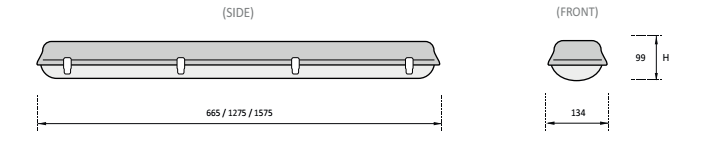

Cat Number Description Dimensions
AC-14-4k-IP65 14W ATLANTIC Surface Mounted Corrosion Proof. GRP Body. IP65 LED Luminaire 665 x 134 x 99 mm
AC-28-4k-IP65 28W ATLANTIC Surface Mounted Corrosion Proof. GRP Body. IP65 LED Luminaire 665 x 134 x 99 mm
AC-33-4k-IP65 33W ATLANTIC Surface Mounted Corrosion Proof. GRP Body. IP65 LED Luminaire 1275 x 134 x 99 mm
AC-66-4k-IP65 66W ATLANTIC Surface Mounted Corrosion Proof. GRP Body. IP65 LED Luminaire 1275 x 134 x 99 mm
AC-70-4k-IP65 35W ATLANTIC Surface Mounted Corrosion Proof. GRP Body. IP65 LED Luminaire 1575 x 134 x 99 mm
Additional Features
Add the following codes to specify additional features;
-EM3 : 3 Hour Emergency Pack
-IIC : Integrated Intelligent Controls; Daylight & Presence Detection, dimmable, ON/OFF and time delay function available.
-OP : Opal Prismatic Diffuser
-CP : Clear Prismatic Diffuser
